Mezzanine Floor with Racking

Rack-Supported Mezzanine Platforms for Integrated Vertical Storage

Mezzanine Floor with Racking by Gabh India

Gabh India is a trusted mezzanine floor with racking manufacturer in India, specializing in rack-supported mezzanine systems that use heavy-duty pallet racking uprights and beams as the primary structural support for elevated platforms. This integrated design combines ground-level pallet racking storage with upper-level flooring for additional storage, picking areas, or light operations in warehouses, factories, distribution centers, and godowns.

Ground level handles heavy pallet loads, while upper tiers support lighter uniform loads with decking options, stairs, railings, and safety gates. Economical for utilizing existing racking or new installations – bolt-together assembly, quick setup, and high space efficiency without extra columns. Fully customizable to match your racking layout and load requirements.

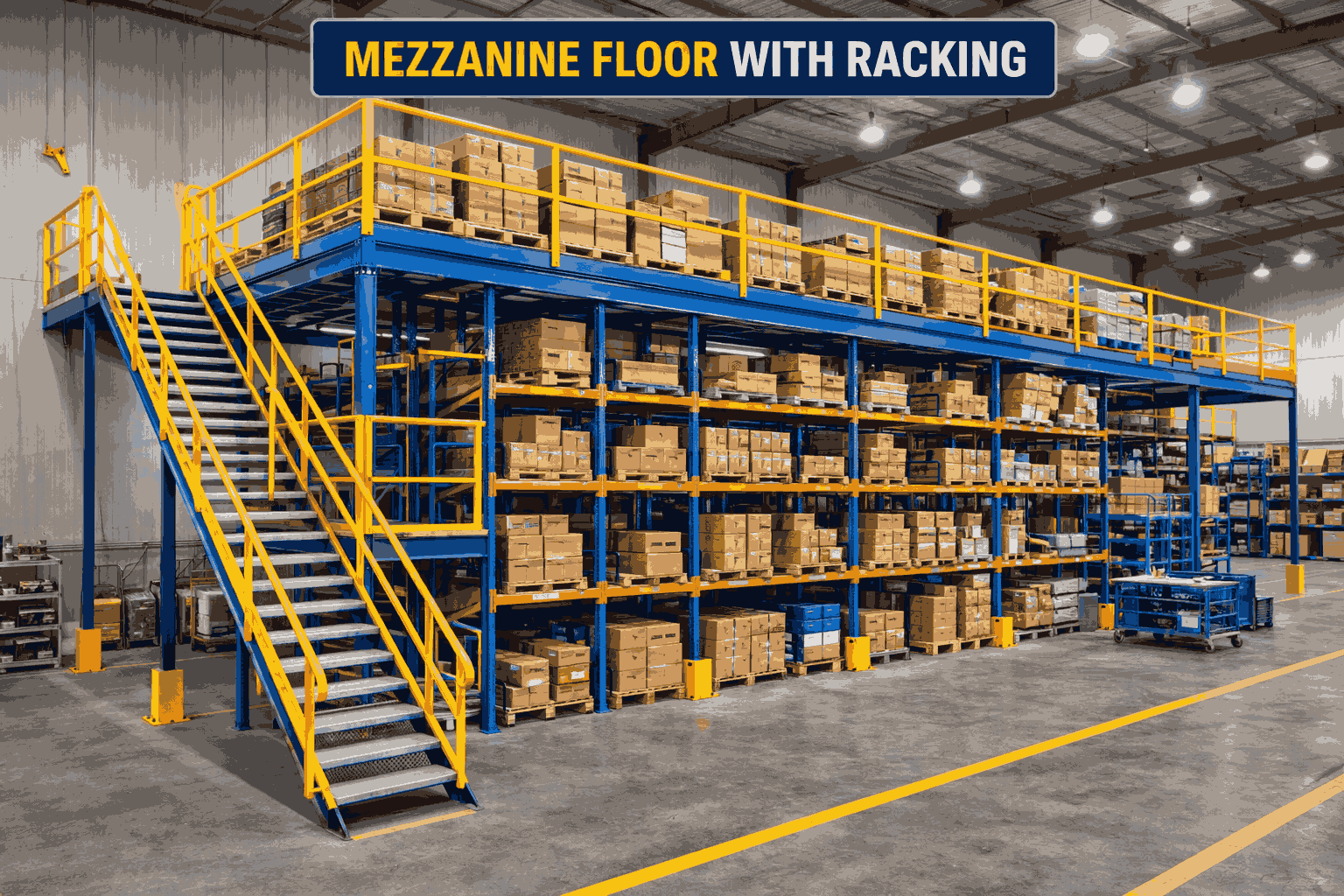

Mezzanine Floor with Racking

Technical Specifications

Parameter Specification
Material High-grade Mild Steel (MS) for racking & structure
Surface Finish Powder-coated / Paint-coated (Rust-resistant)
Ground Level Load (Racking) 1000–3000 kg per pallet position (as per pallet rack config)
Upper Tier Load Capacity 300–1000 kg/m² (uniformly distributed, customizable up to 1500 kg/m²)
Total Height 4–10 meters (customizable, single or multi-tier)
Span Between Uprights 2.5–4 meters (aligned with pallet racking grid)
Decking Options Chequered plate, Plywood, Steel panels, Grating
Access & Safety Stairs, handrails, kick plates, safety gates, pallet drop gates
Design Type Rack-supported (using pallet racking uprights/beams as support)
Customization Integration with existing/new racking, tiers, height, load, access points

Key Features of Our Mezzanine Floor with Racking

Integrated Rack Support

Uses pallet racking structure for mezzanine support – economical & space-efficient.

Rust-Resistant Finish

Powder-coated racking & platform for durability in warehouse environments.

Quick Installation

Bolted modular design – fast assembly using existing or new racking.

Custom Integration

Tailored to fit pallet racking layout, load, height & upper decking needs.

Enhanced Safety

Guardrails, anti-slip decking, pallet gates – meets industrial standards.

Best Price in India

Cost-effective integrated solution with premium quality & support.

Ready to Install Mezzanine Floor with Racking?

Contact Gabh India today for custom design, site survey, and best pricing.

Request Quote / Call +91 9899769932

Frequently Asked Questions

Ground level (racking) supports heavy pallet loads (1000–3000 kg per position), upper tiers 300–1000 kg/m² (customizable up to 1500 kg/m²). We design per your pallet weights and upper usage.

Yes, we offer complete supply, installation & supervision services PAN India with trained teams.

Rack-supported uses pallet racking as structural support – more economical with existing racking, but upper load lighter. Freestanding has independent columns for higher uniform loads on all levels.
